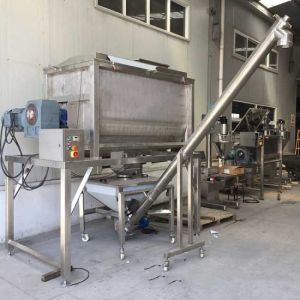

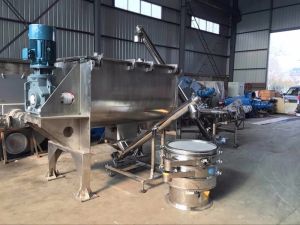

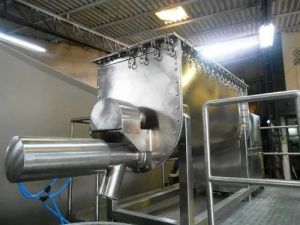

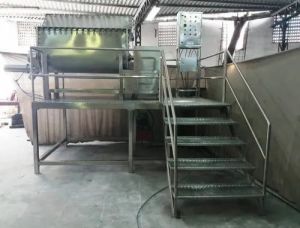

Stainless Steel Ribbon Blender

Boinns Ribbon Blenders are ideal for mixing dry free-flowing solids and used for all dry foods products, nutraceuticals, protein powder mixes, dry juice mixes, chemicals, fertilizer, insecticides, colorants, resins and polymers. The moderate shear of the ribbon or paddle naturally breaks down lumps and agglomerates.

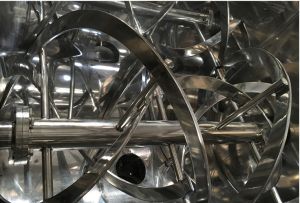

Ribbon blenders are extremely efficient and economical. The double ribbon mixer design moves solids in two directions simultaneously and also rotationally to provide the mixing action.

The inner ribbon mixer moves the solids toward the ends of the trough and the outer ribbons move solids toward the middle of the trough. When discharging the solids, the outer ribbons move the solids toward the centre discharge valve.

Standard Design Features

Material Contact part 316 and Non-contact part 304 Stainless Steel

Interior Surfaces        : Polished 180 Grit

Exterior Surfaces       : Glass Bead Blasted

Discharge                  : Swing away flush valve with pneumatic actuation

Working Capacities     : 75 to 20000 Liters Capacity

Controls                     : Soft Start or VFD

Loading                      : Loading Cover(s) with Welded Grate

Safety                        : Magnetic Safety Switch(s) on Main Cover

Options Features

Slide-gate discharge valve with pneumatic actuator

Liquid Addition Spray Bar and nozzles

CIP-Clean-In-Place Spray Nozzles

Purged Seals

Modified covers with custom designed ports

Product temperature sensor

Vacuum compatible design

Explosion-proof motors

Higher HP drives

Shaft-mounted or hollow-bore gear reducers

Soft-start or variable frequency drives
