Pharmaceutical Lifter

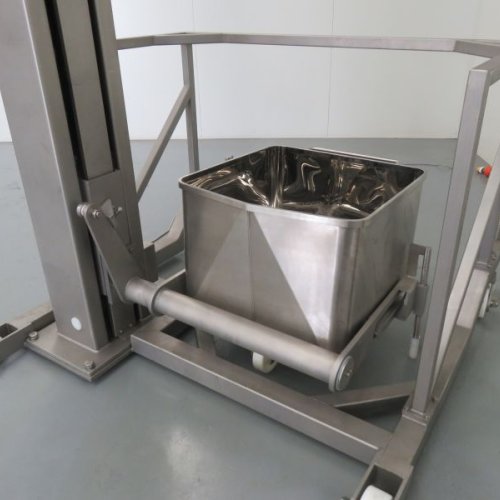

Our Boinns Drum Lifters are use in food production industries such as meat, diary, small goods, dry goods and more. Use this bin anywhere requiring a food safe industry standard bin, with easy to move heavy load

It is perfect for any food manufacturer or processor to lift and load 200L to 500L bin into tall or large machinery, reducing staff manual handling and increasing productivity, it is rated to carry a payload of up to 500kgs.

Main lifting column is made of M.S. structure and externally cladded by SS 304 material with front side covered with PVC belt to prevent powder entering the column area.

Hydraulic lifting arrangement comprised of double acting hydraulic cylinder, actuated by gear pump through directional control valve.

Power Pack - The electro hydraulic power pack consist of oil reservoir, oil level indicator, filter breather, suction strainer, gear pump and electric motor.

Operation Safety - To have safe operation to protect man and machine, our lifting unit is provided with various protective arrangement such as non-return valve, which prevents lifter coming down in case of hose failure.

Bin up position locking arrangement can be given by means of special stopper arrangement on request.

Features

Travel Speed UP & DOWN 3 to 3.5 meters per minute.

Dual heavy-duty chain provides for extra safety

Available in either left-hand or right-hand configurations

Optional mobile bin lifter attachment frame

Lifting Capacity Up to 300kg Max

Discharge height Up to 5 to 6 meters

Duty nylon wheels and lifting lugs compatible with all standard  bin lifters.

Swing loader (tilt and turn frame) for draining solids from 200L to 500L of Bins.

The frame and swing arm for receiving the loading trolleys and completely made of SS304

Drive for tipping process consists of an electrohydraulic drive station with lifting cylinder.

Control buttons with "UP/DOWN" operating panel are mounted in the tilting direction on the right side of the base frame.

Base frame is also equipped with two fixed castors and two lockable castors.

We are pharmaceutical cage lifter manufacturers in thane. These are useful for lifting material in chemical, pharma plants and other industries. these cage lifters ensure smooth movement of goods between floors, enhancing overall operational efficiency.

Also, we offer a wide range of customizable options, including various safe working load capacities, platform sizes, lifting height.

•         Manufactured in capacities ranging from 0.5 tons to 7.5 tons with normally cage size of 1x1 meters to 3x3 meters with twin column option and required lifting height

•         Cage Lifter are guided in steel guide member (C-section) with hoisting and lowering operations performed by hydraulic cylinder with the help of leaf chain.

•         Limit switch at each floor and cage safety railing doors to avoid any accidental casualty.

•         Optional Ramp for easily moved goods in and out of the cage

•         Made of SS-304 Material, Structural Pipe of size 30x30 mm and 50x50 mm.

•         Travel Speed UP & DOWN 3 to 3.5 meters per minute.

Bodhi Innovations Lifter is designed to lift and position any type of in process container or storage bins.

This device is designed to achieve dust free transfer of 'In Process' materials enhancing cGMP standard and eliminates laborious manual operation.

Lifter arm is made of AISI 304 material.

Main lifting column is made of M.S. structure and externally cladded by SS 304 material with front side covered with PVC belt to prevent powder entering the column area.

Floor and ceiling swivel bearing units are completely enclosed with SS 304 Material.

Hydraulic lifting arrangement comprised of double acting hydraulic cylinder, actuated by gear pump through directional control valve.

Power Pack - The electro hydraulic power pack consist of oil reservoir, oil level indicator, filter breather, suction strainer, gear pump and electric motor.

Operation Safety - To have safe operation to protect man and machine, our lifting unit is provided with various protective arrangement such as non-return valve, which prevents lifter coming down in case of hose failure.

Bin up position locking arrangement can be given by means of special stopper arrangement on request.

No chance of any kind of segregation happening during transfer of blend.

Scissor lifts are mobile supported cage type work platforms used for safely moves of workers vertically into different locations. Scissor lifts are different from aerial lifts because the lifting mechanism moves the cage type work platform straight up and down using crossed beams functioning in a scissor attached to the base structural portable assembly.

The steel supporting beams under the cage type work platform are hinged with pivot points, creating an assembly resembling connected scissor blades. When the base of the beams is pushed together, the structure extends, raising the work platform vertically.

Features

From 250 to 500 Kgs. Safe Working Load, lifting height from 3 to 5 meter.

Cage platform made of SS 304 square and rectangular structural Pipe. Platform with chequered plate, having doors with lock.

Electro- Hydro operated scissor lifting mechanism.

Push button remote control for UP-DOWN Movements.

Portable with PU Coated nylon castors wheel, Rear two Swiveling type with brake and front two non-Swiveling type without brake.

Mechanical jacks to fix the Scissor lift on ground with 4 Nos. of support legs and screw locking levelling pad will be providee.

Handle will be provided to pull the Scissor Lift at suitable place.

SS Matt Finish.

Travel Speed UP & DOWN 3 to 3.5 meter per minute.

Power panel will be mounted on scissor lift in SS304 enclosure along with Power pack.

Scissor Lift mounted operating panel in SS enclosure with push buttons for UP- DOWN Movement will be provided.

An IPC (Intermediate Product Container) Bin is a special type of container used closely with the IPC bin. It is used for blending of dry powders during tablet and capsules manufacturing. The bin blender machine enables good lubrication of granules, homogenization, mixing or granules and material conveyance to other processes.

The IPC/IBC bins are developed to minimize and eliminate any human touch that may happen during the manufacturing process. The IPC bins can vary in capacity from 150 liters going up to 3000 liters depending on the user requirement.

Design Construction

Available from 150 Ltrs. To 3000 Ltrs.

Available in cylindrical as well as square shape.

cGMP with SS 316 contact parts.

Sanitary design suitable for easy cleaning.

Inside and outsider welds ground to smooth finish and flush to mirror finish.

Outlet butterfly valve for ease in discharging the stored materials.

Tailor made construction available on demand.
