Pharmaceutical Vacuum Dryers

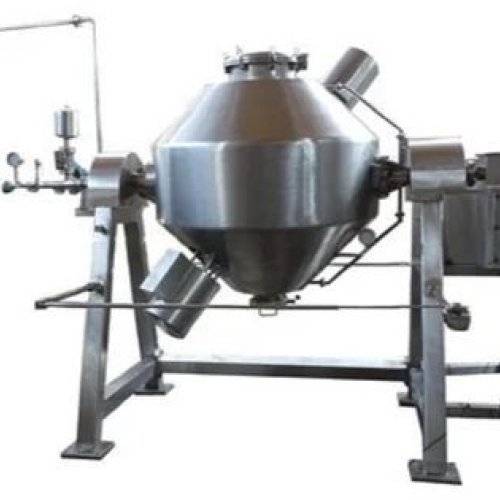

Leading Manufacturers, Exporters and Wholesaler of Stainless Steel Rotary Vacuum Dryer and Stainless Steel Roto Cone Vacuum Dryer from Thane.

Business Type Manufacturer, Exporter, Supplier
Material Stainless Steel
Finishing Polished
Color Silver
Power Source Electric
Automatic Automatic
Usage Pharmaceutical Industry
Warranty 1 Year
Country of Origin India
Capacity(Litre) 1000
Material Grade 304
Voltage 440 V
Motor Power 2 HP
Frequency 50 Hz

Click to view more

Preferred Buyer From

Location Worldwide

Yes! I am interested


8 Lac - 50 Lac / Piece

1 Piece (MOQ)

Get Best Price
Business Type Manufacturer, Exporter, Supplier
Driven Type Electric
Color Grey
Automatic Grade Automatic
Power 9-12kw
Application Industrial Use
Voltage 220V
Weight 900-1000kg
Warranty 1year
Country of Origin India
Automatic Grade : Automatic

Click to view more

Preferred Buyer From

Location Worldwide

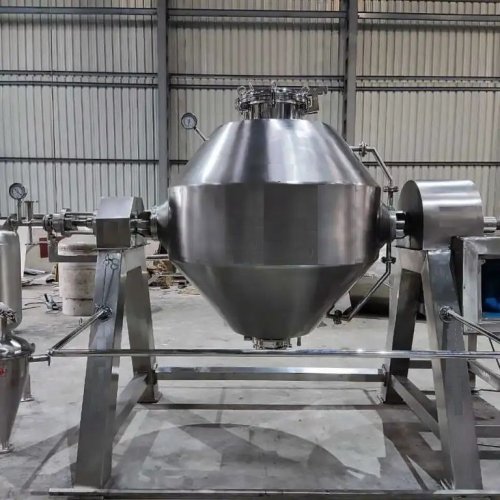

Boinns Roto Cone Vacuum Dryer is suitable for drying of materials which cannot resist high temperature, material which are easily oxidized, volatatile materials which should be retrieved, materials strong irritant and poisonous in nature. The roto cone dryer with improved technology integrates during operation under vacuum. The roto cone dryer facilitates enhanced drying efficiency, low temperature operation and economy of process by total solvent recovery. It helps cGMP-based working by achieving optimum dust control, while offering advantages of efficient charging and discharging of materials. The drying unit equipped with lump breakers initially breaks large lumps and subsequently powders them (in single cone). The rotary action of the dryer together with mechanical action of the breakers cuts down drying time and gives a lump free product.

FEATURES

Inner shell/Cone and contact parts in SS 316. Steam/HW water Jacket and Insulation in SS 304.

Cyclone separator in SS 316.

Dry Mechanical Seal for vacuum side.

Digital Temperature Indicators (FLP) at Hot Water inlet and outlet.

Provision for Nitrogen purging/Vacuum release with interlocking to isolation valve.

Gear Box & Motor Direct Coupled.

Extended shaft (drive side) so that drive unit can be kept in service zone (if required).

Vacuum loading system of wet material into the Cone.

Internal 320 Grit Mirror Polish and Outer 180 Grit Mat Finish.

Reduces drying time Eliminates need for re-drying of lumps.

Handling and exposure of final product is avoided Gives uniformity size dry product.

System can process crystalline or amorphous powders which are prone for lumps.

Optimum and continuous vacuum maintenance during process.

Cantilever (One side base) construction. VFD for Drive Motor with RPM indicator.

Lump breakers with FLP motor, Mechanical seals and electrical slipring joint.

Auto Bin loading mechanism with timer control and Bins. Vacuum pump with FLP motor.

Hot water system (steam heated) with tank and circulation pump.
