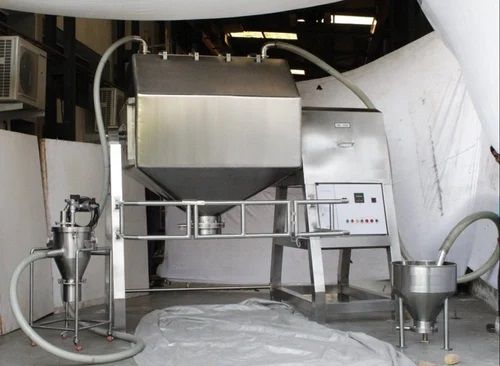

Pneumatic Conveying System

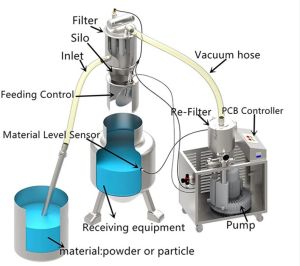

Boinns Pneumatic conveying systems are suitable for the transport of powdered and granular materials in pharmaceutical industry. The system requirements are a source of compressed gas, usually air, a feed device, a conveying pipeline and a receiver to disengage the conveyed material and carrier gas.

The system is totally enclosed, the system can operate entirely without moving parts coming into contact with the conveyed material. High, low or negative pressures can be used to convey materials. For hygroscopic materials dry air can be used, and for potentially explosive materials an inert gas such as nitrogen can be employed.

Material flow rates can be controlled easily and monitored to continuously check input and output, and most systems can be arranged for completely automatic operation.

A very wide range of materials can be handled and they are totally enclosed by the system and pipeline. This means that potentially hazardous materials can be conveyed quite safely.

Design Features

Closed system for dust free operations

Buffer vessel provision to avoid choking & assist in continuous feeding of product

Reduction   in   manpower   required   for charging

Improved agitation and thus reduced batch time, through controlled material addition

Reduces solids handling and eliminates hoists and handling equipment

Easier to clean than conventional vacuum conveying equipment; CIP available

Automatic pulse filter cleaning mechanism for improved process efficiency

Integrated HIM system for automated process, Existing process steps can be linked

Multiple options available for different applications: Fixed, Mobile & Wall mounted

Effective and reliable system for transfer of powders and granules

Dust free operations

Batch time reduction, Time savings, Manpower savings

Easy cleaning and maintenance
